Read Bristle Health Raw Data

Created: 2022-07-14 ; Updated: 2022-08-02

The oral microbiome testing company, Bristle Health, gives me a web page table of all the microbes they found in my mouth. Can I turn that web page table into a more useful R dataframe?

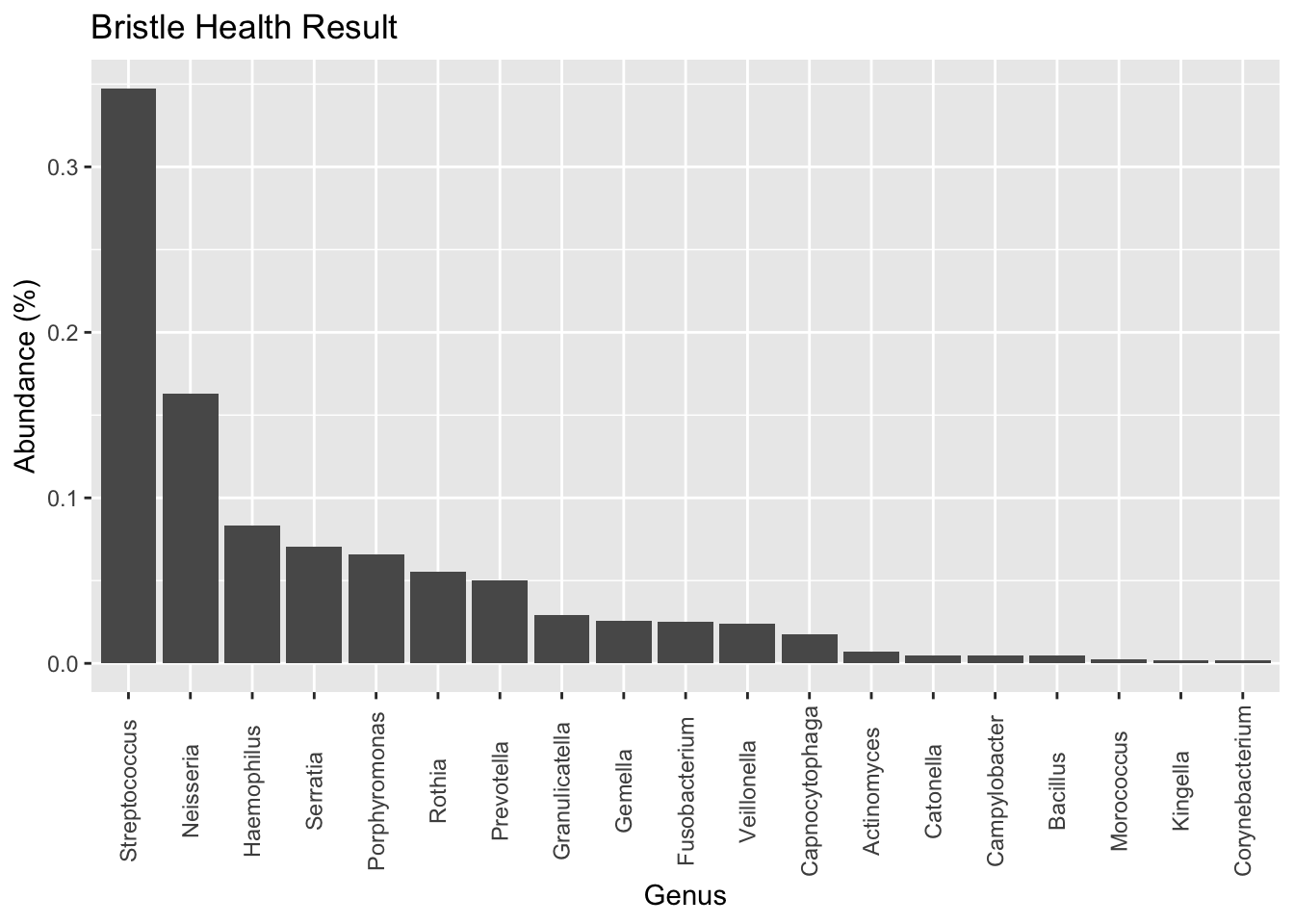

Read the Data

The data is kept in a format with columns for genus, species, and relative abundance. That’s easy to read straight from Excel format.

library(tidyverse)

raw_bristle_data <- readxl::read_xlsx(file.path("BristleHealthRaw.xlsx"))

raw_bristle_data %>% transmute(genus,species,abundance=`relative abundance`/100) %>%
  group_by(genus) %>% summarize(sum=sum(abundance)) %>%
  arrange(desc(sum)) %>% slice_max(order_by=sum, prop=.5) %>% # summarize(total=sum(sum))# %>%
  ggplot(aes(x=reorder(genus,-sum), y=sum)) + geom_col() +
  theme(axis.text.x=element_text(angle = 90, vjust = 0.5)) +
  labs(y="Abundance (%)", x = "Genus", title = "Bristle Health Result")

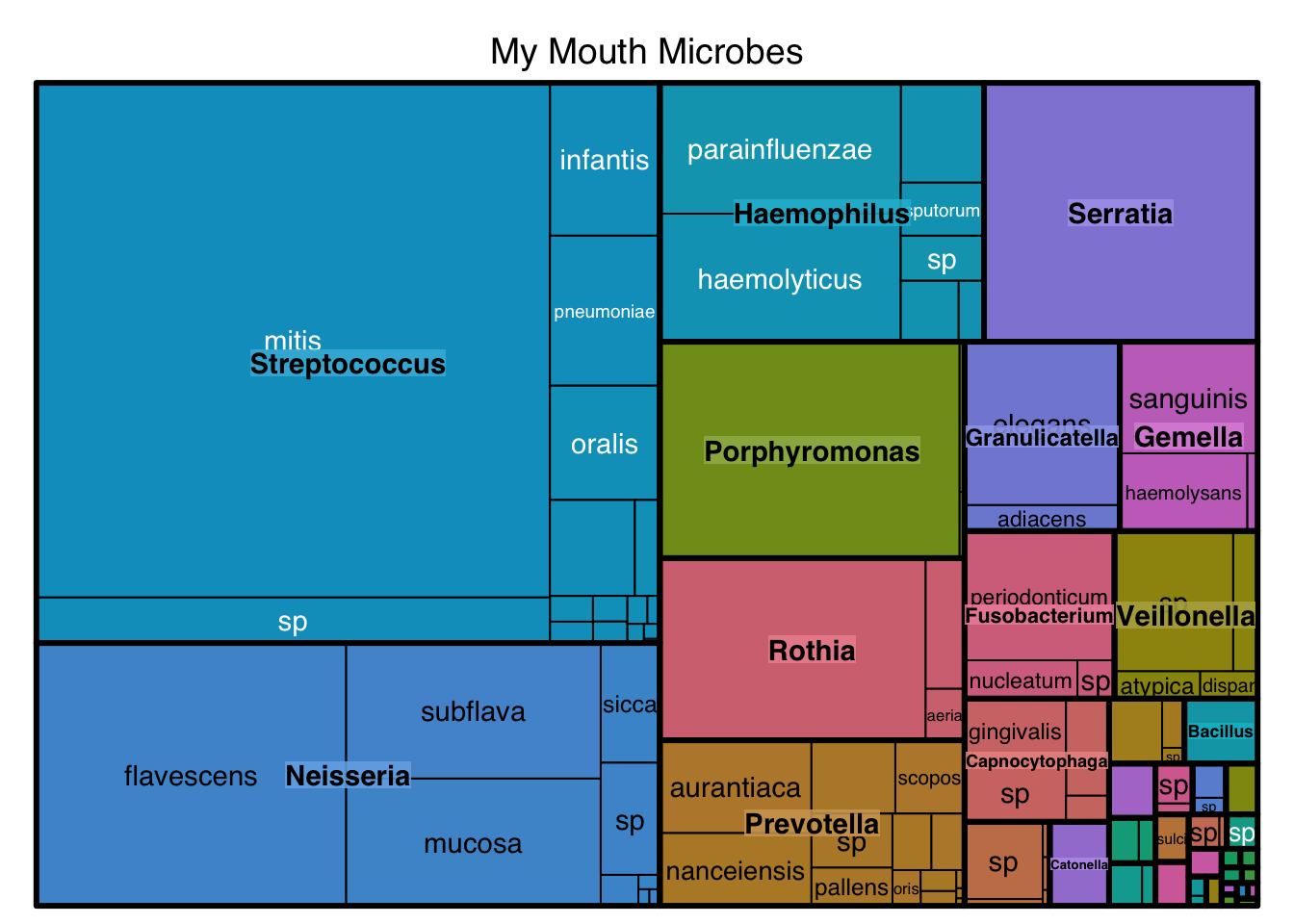

Make a Tree Map

if(!require("treemap")) install.packages("treemap")

raw_bristle_data %>% transmute(genus,species,abundance=`relative abundance`/100) %>%
treemap::treemap(dtf=., index = c("genus","species"),
                 vSize="abundance",
                 title = "My Mouth Microbes")

16S Samples

Make a dataframe of all uBiome samples (genus level only). Requires some special packages.

library(actino)
library(phyloseq)
library(psmr)  # use library function instead.

options(scipen = 999)

mouth.genus <- subset_samples(sprague.genus.norm, Site == "mouth")

mouth_df <- mhg_df_just_taxa(mouth.genus,"Streptococcus") %>% select(Date,Label,abundance)

bristle_genus <- raw_bristle_data %>% select(genus) %>% pull(genus) %>% unique()

ub_labels <- mhg_df_just_taxa(mouth.genus,"Streptococcus") %>% pull(Label)

ub_mouth_genus_df_abundances <- sapply(bristle_genus[c(1:16,18:31,34,37)],function(x) {mhg_df_just_taxa(mouth.genus,x) %>% pull(abundance)/1000000}) %>% as.data.frame()

ub_mouth_genus_df <- cbind(ub_labels,ub_mouth_genus_df_abundances)

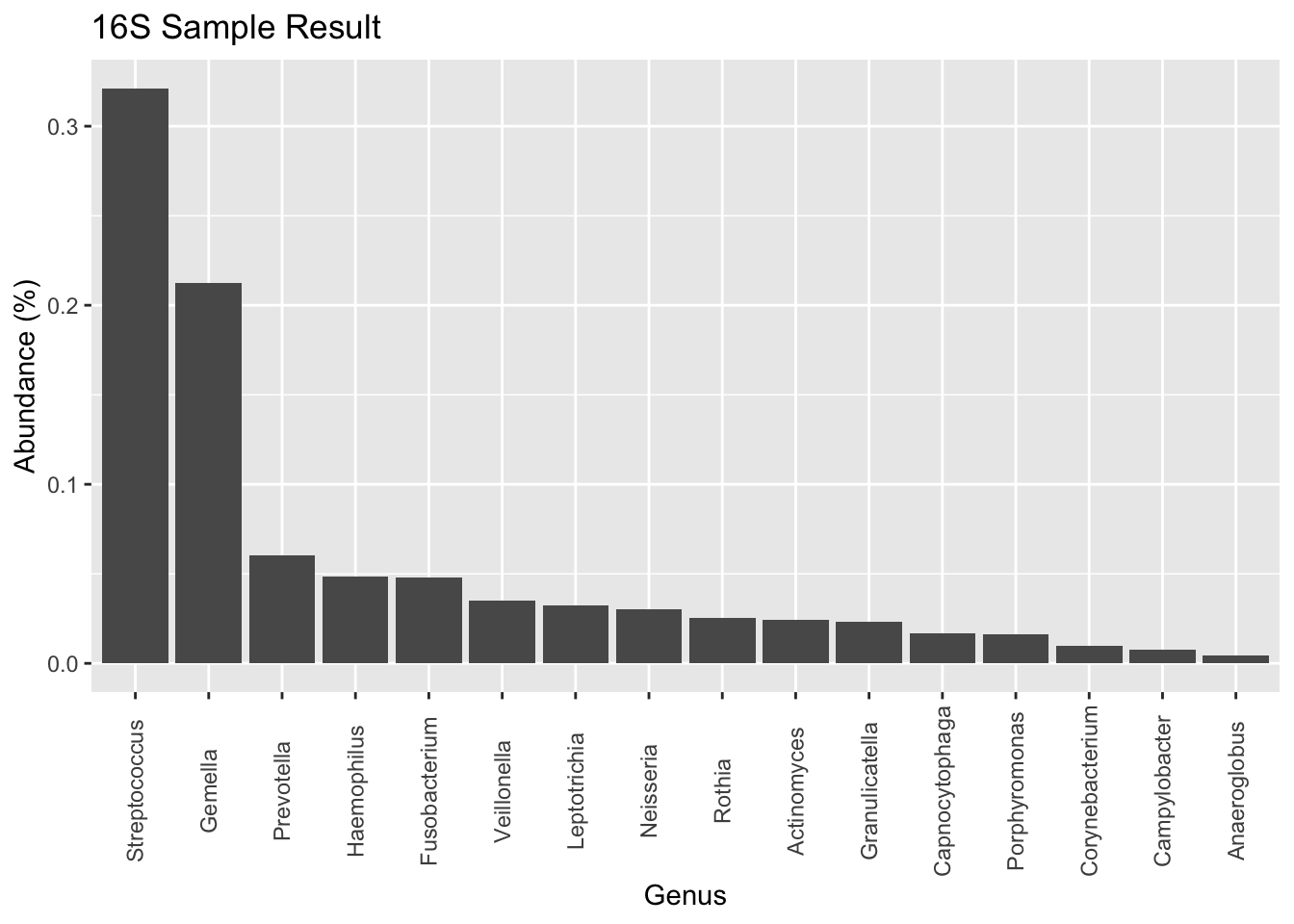

Plot 16S Data

ub_mouth_genus_of_sample <- function(sample_number = 1, genus_df=ub_mouth_genus_df) {
  .rownames <- genus_df[sample_number,-1] %>% t() %>% as.data.frame() %>% rownames()
  return(tibble(genus = .rownames,abundance = genus_df[sample_number,-1] %>% t() %>% as.vector() ))
}

ub_mouth_genus_of_sample(1)  %>%
  slice_max(order_by=abundance, prop=.5) %>% # summarize(total=sum(sum))# %>%
  ggplot(aes(x=reorder(genus,-abundance), y=abundance)) + geom_col() +
  theme(axis.text.x=element_text(angle = 90, vjust = 0.5)) +
  labs(y="Abundance (%)", x = "Genus", title = "16S Sample Result")

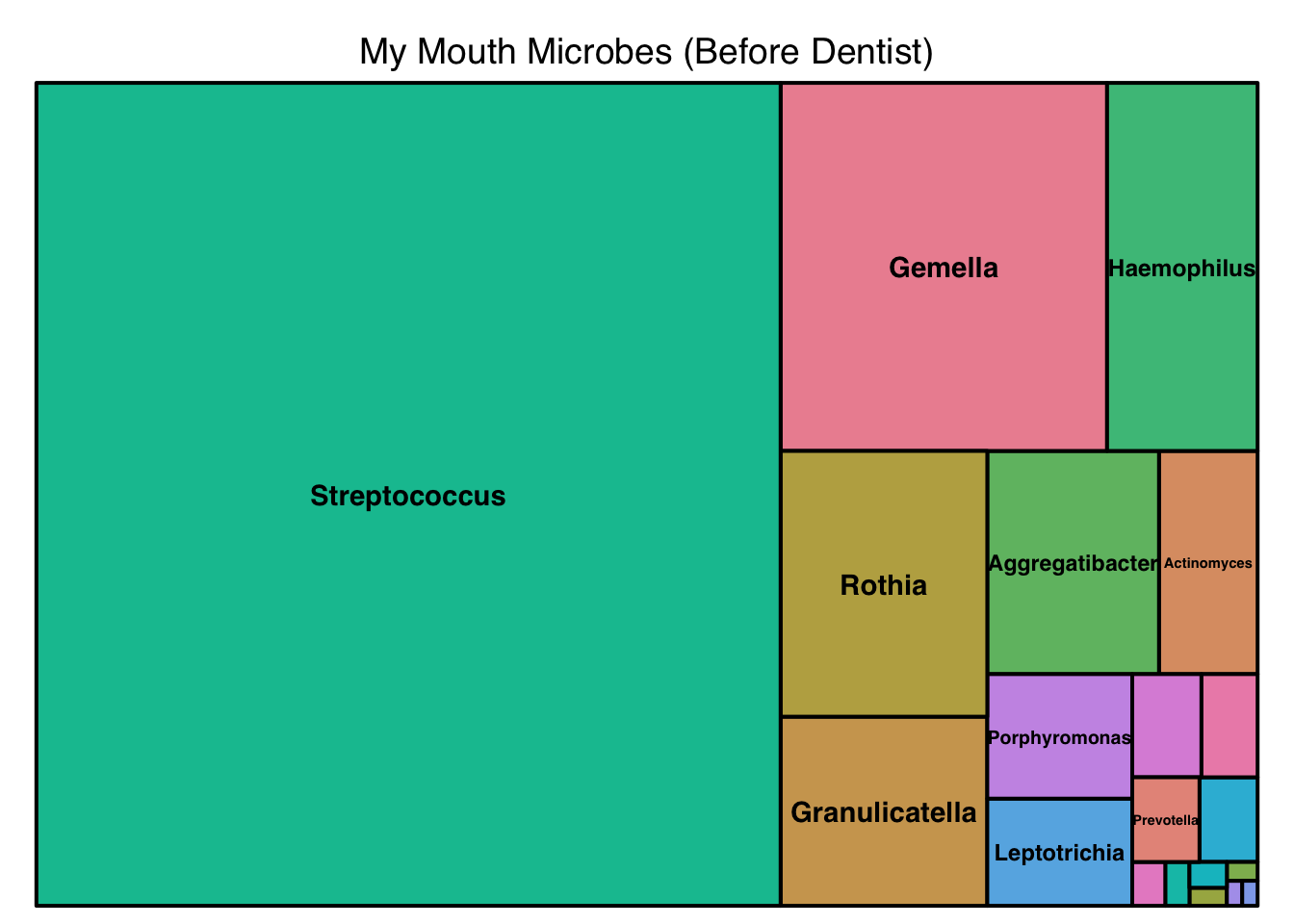

Tree Map of 16S Data

ub_mouth_genus_of_sample(75) %>%
treemap::treemap(dtf=., index = c("genus"),
                 vSize="abundance",
                 title = "My Mouth Microbes (Before Dentist)")

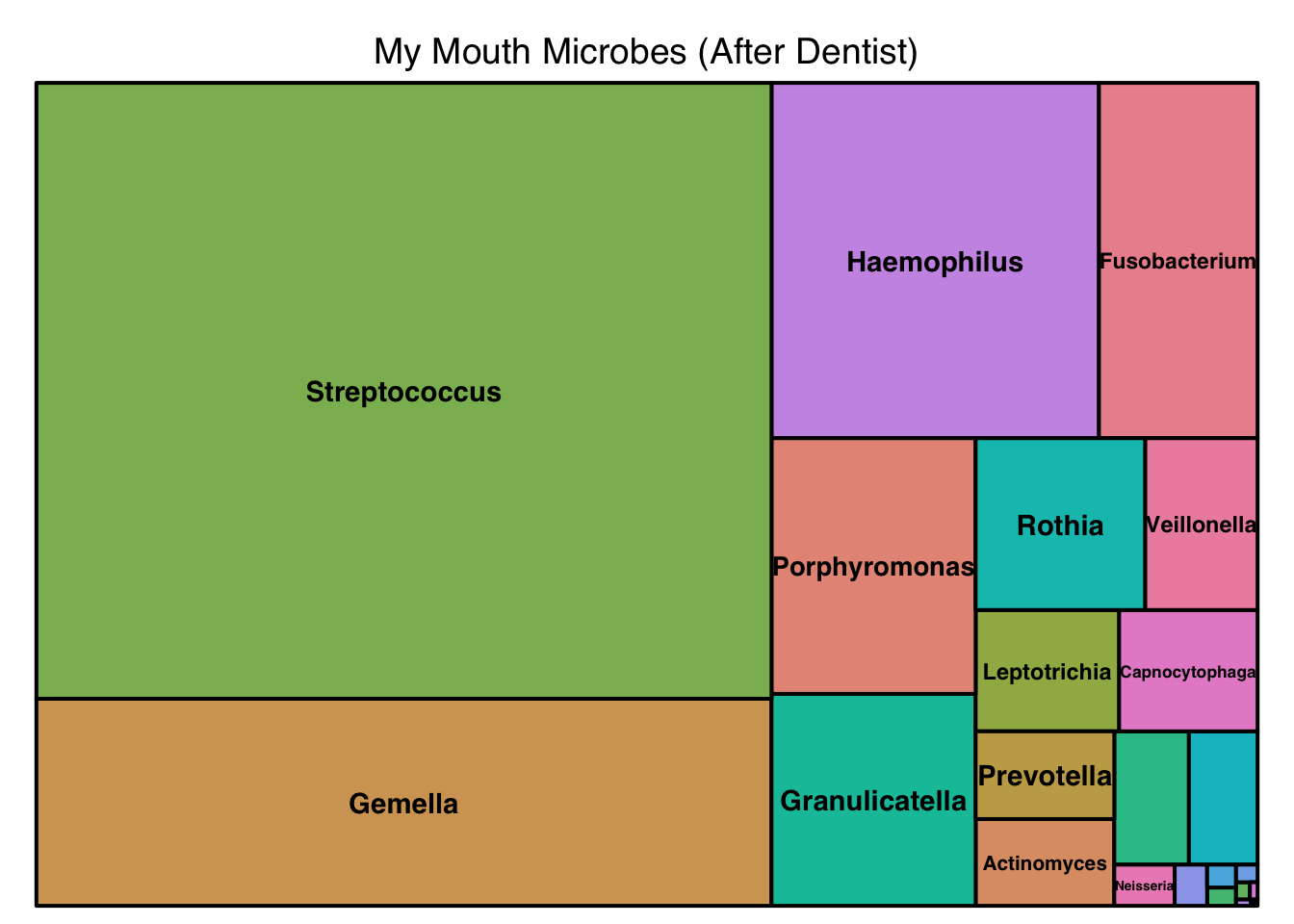

ub_mouth_genus_of_sample(76) %>%
treemap::treemap(dtf=., index = c("genus"),
                 vSize="abundance",
                 title = "My Mouth Microbes (After Dentist)")

P.S. You can try this yourself using my R Shiny Web app
